EDGE-6V – Elevator Door Protection System

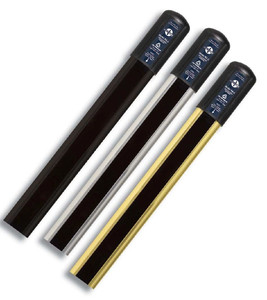

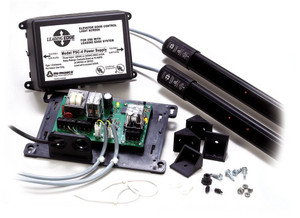

Tri-Tronics EDGE-6V Elevator Door Light Curtain
The Tri-Tronics EDGE-6V is a high-performance elevator door protection system featuring a dense array of infrared beams with a long detection range up to 16 feet. It’s designed to provide reliable obstruction detection for both center- and side-opening doors. With low power consumption, fast response time, and wide temperature tolerance, the EDGE-6V is ideal for both modernization and new installations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | EDGE-6V |
| Detection Range | Up to 16 ft (4.9 m) |
| Operating Voltage | 12–30 VDC |
| Power Consumption | 130 mA (total for both arrays) |
| Response Time | 50 ms nominal, 75 ms max |
| Operating Temperature | -36°F to +158°F (-38°C to +70°C) |
| Enclosure Options | NEMA 1 (Standard), NEMA 4/IP67 (Waterproof) |
With its rugged build and dependable performance, the EDGE-6V enhances elevator safety and reliability across diverse environments.
