Imperial Electric IM-Series 15–30 HP submersible motor – 3600 RPM, thermal protection, 3-phase, 200V / 230-460V / 575V

IM Series Submersible Motors – 15 to 30 HP

Imperial Electric
SKU:
12929-IM
Current Stock:
Description

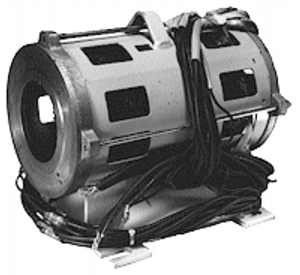

Imperial Electric IM-Series Submersible Motors – 15 to 30 HP

Imperial Electric IM-Series motors deliver reliable performance at 3600 RPM and are rated for 80 or 120 starts per hour. These three-phase induction motors are available in 200V, 230/460V, and 575V configurations. Models designed for 208V operation are labeled accordingly. All motors include connections for Wye-Delta or across-the-line starting and are protected by internal thermal elements. Each unit comes with 87-inch external leads and is built on the 217Z frame with a 32 mm shaft.

Available Models (15–30 HP)
Model HP RPM Frame Phase Voltage (VAC)
IM15/208 15 3400 217Z 3 200
IM15/230/46 15 3400 217Z 3 230/460
IM20/200 20 3395 217Z 3 200
IM20/230/46 20 3395 217Z 3 230/460
IM25/200 25 3400 217Z 3 200
IM25/230/46 25 3400 217Z 3 230/460
IM25/575 25 3400 217Z 3 575
IM30/200 30 3390 217Z 3 200
IM30/230/460 30 3390 217Z 3 230/460

Looking for more power? See our 40–60 HP IM-Series submersible motors.
