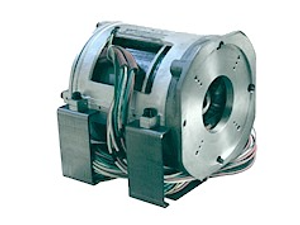

Imperial Electric IM-Series 40–50 HP submersible motor – heavy-duty, 38 mm shaft, 200V / 230-460V / 575V, 3600 RPM

IM Series Submersible Motors – 40 to 50 HP

Imperial Electric
SKU:
IM40/200
Current Stock:
Description

Imperial Electric IM-Series Submersible Motors – 40 to 50 HP

Designed for continuous-duty submersible pumping systems, the Imperial Electric IM-Series 40 to 50 HP motors operate at 3380–3410 RPM and are built on the L217Z frame. These three-phase motors support Wye-Delta and across-the-line starting, and come equipped with internal thermal protection and external leads measuring 87 inches. Available in 200V, 230/460V, and 575V, these motors are ideal for demanding industrial applications. All units in this range feature a 38 mm shaft.

Available Models (40–50 HP)
Model HP RPM Frame Phase Voltage (VAC)
IM40/200 40 3410 L217Z 3 200
IM40/230/46 40 3410 L217Z 3 230/460
IM50/208 50 3380 L217Z 3 200
IM50/230/46 50 3380 L217Z 3 230/460
IM50/575 50 3380 L217Z 3 575

For smaller capacity applications, see our 15–30 HP IM-Series submersible motors.
