IMO G3DB-187 – Dry Elevator Screw Pump (33.8 GPM, Approx. 5 HP)

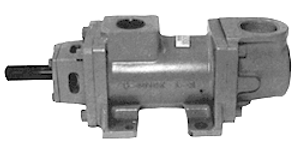

IMO G3DB-187 | Dry Elevator Screw Pump
The IMO G3DB-187 is a compact dry-running screw pump designed for hydraulic elevator systems requiring moderate flow capacity. With a delivery rate of 33.8 GPM at 1750 RPM and an estimated power rating of 5 HP, this model is ideal for residential and low-rise commercial lifts. Its durable construction, quiet operation, and low maintenance make it a reliable choice for long-term elevator performance.
Key Features
- Flow rate: 33.8 GPM
- Power: Approx. 5 HP
- Speed: 1750 RPM
- Dry-running operation minimizes fluid contamination
- Low-noise design for elevator environments
- Ideal for smaller or retrofit power units
Applications
- Hydraulic elevator systems
- Low-rise commercial buildings
- Residential elevators
- Quiet, compact hydraulic lift setups
Specifications
- Model: G3DB-187
- Flow Rate: 33.8 GPM
- Power: Approx. 5 HP
- Motor Speed: 1750 RPM
- Weight: Approx. 24 lbs
- Operating Temperature: 0°F to 180°F
- Viscosity Range: 150 SSU
Construction & Design
- Housing: Cast iron construction
- Discharge Connection: Flanged steel outlet
- Power Rotor: Hardened steel screw element
- Idler Rotors: High-strength alloy
- Mounting: Base-mounted horizontal alignment
- Inlet: Inline suction with protective strainer
- ItemAliasNos:
- G3DB-187,MIS-DPMP-100
