IMO G3DB-275 – Dry Elevator Screw Pump (Est. 72 GPM, 12.5 HP)

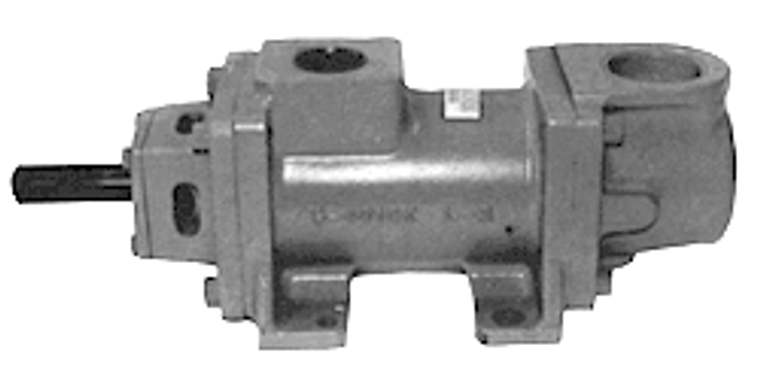

IMO G3DB-275 | Dry Elevator Screw Pump
The IMO G3DB-275 is a robust dry-mount screw pump designed for hydraulic elevator applications. With an estimated flow rate of 72 GPM and a power rating of 12.5 HP, this model strikes a balance between power and efficiency. Engineered for quiet, reliable operation in dry-running systems, it’s an ideal solution for mid-capacity commercial and residential elevator systems.
Key Features
- Estimated flow rate: 72 GPM
- Power: Approx. 12.5 HP
- Speed: 1750 RPM
- Dry-mounted for clean and efficient operation
- Quiet, low-vibration screw pump design
- Ideal for elevator applications with moderate flow demand
Applications
- Hydraulic elevator systems
- Mid-rise commercial elevators
- Residential elevators with increased capacity
- Dry-running power units for clean operation
Specifications
- Model: G3DB-275
- Flow Rate: ~72 GPM (estimated)
- Power: ~12.5 HP (estimated)
- Motor Speed: 1750 RPM
- Weight: Approx. 36 lbs
- Operating Temperature: 0°F to 180°F
- Viscosity Range: 150 SSU
Construction & Design
- Housing: Cast iron with rugged design
- Discharge Connection: Steel flange outlet
- Power Rotor: Hardened steel screw
- Idler Rotors: Alloy composition for extended life
- Mounting: Horizontal base-mounted setup
- Inlet: Inline suction with stainless screen
- ItemAliasNos:
- G3DB-275
