MUF-A2G – Elevator Hydraulic Air Bladder Muffler, 2" Grooved Connections

MUF-A2G – Elevator Hydraulic Air Bladder Muffler, 2" Grooved Connections

Quality Elevator
SKU:
MUF-A2G
Current Stock:
Description

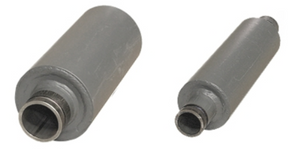

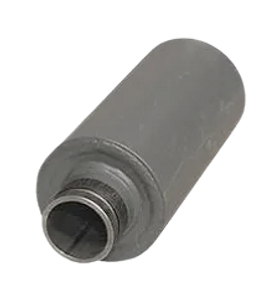

Model MUF-A2G | Elevator Hydraulic Air Bladder Muffler

The MUF-A2G Elevator Hydraulic Muffler features an advanced air bladder design with an air charging valve to enhance noise suppression and minimize hydraulic pulsations. Built for performance and flexibility, this muffler has 2" grooved connections, a 4-5/8" diameter, and a compact 13-1/4" overall length. The MUF-A2G is ideal for modern hydraulic elevator systems where precise vibration control and compact installation are priorities. Its maintenance-free operation makes it a dependable choice for both new installations and modernization projects.

  • Pipe Size: 2"
  • Connection Type: Grooved/Grooved
  • Dimensions: 4-5/8" Diameter x 13-1/4" Overall Length
  • Weight: 27 lbs
  • Internal air bladder design with air charging valve
  • Superior vibration and noise control
  • Compact design ideal for tight elevator machine rooms
  • Maintenance-free operation
Additional Information
ItemAliasNos:
MUF-A2G
