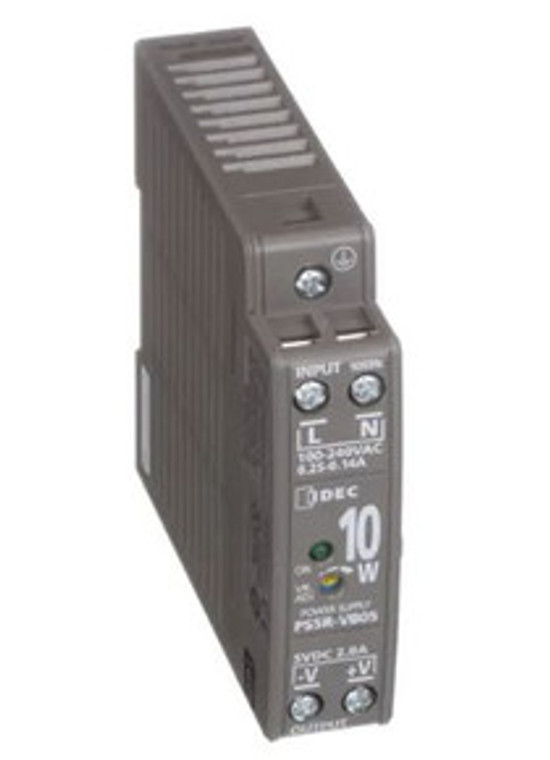

PS5R-V Series Elevator DIN-Rail Power Supplies – universal input

PS5R-V Series | Elevator DIN-Rail Power Supplies

The IDEC PS5R-V Series DIN-rail switching power supplies deliver regulated DC outputs from 5 to 24 VDC at power ratings of 10–240 W for elevator control and safety systems. Slim housings minimize panel footprint while maintaining high efficiency compared to linear supplies. :contentReference[oaicite:0]{index=0}

Featuring universal inputs of 85–264 VAC or 100–370 VDC, spring-up screw terminals, auto-reset overcurrent protection, and approvals including UL 508, UL 1310 Class 2 (≤ 90 W), Class I Division 2, CE and RoHS compliance, they can be DIN-rail or surface mounted in six orientations with a five-year warranty. :contentReference[oaicite:1]{index=1}

• Universal input 85–264 VAC / 100–370 VDC
• Slim profiles: 22.5 mm (10–30 W), 36 mm (60–90 W), 46 mm (120 W), 60 mm (240 W)
• Spring-up screw terminals accept ring & fork terminals
• DIN-rail or direct surface mountable in six directions
• Auto-reset overcurrent protection; SEMI F47 sag immunity
• Approvals: UL 508, UL 1310 Class 2 (≤ 90 W), Class I Div 2, CE, RoHS
• Five-year factory warranty

The PS5R-V Series provides reliable, space-saving DC power for elevator subsystems. Always verify input/output compatibility and mounting before installation.
