UC4 – Hydraulic Elevator Control Valve, 2" Ports 800 PSI Max
Write a Review
UC4 – Hydraulic Elevator Control Valve, 2" Ports 800 PSI Max
UC4 | Hydraulic Elevator Control Valve – 2" Ports, 800 PSI Max

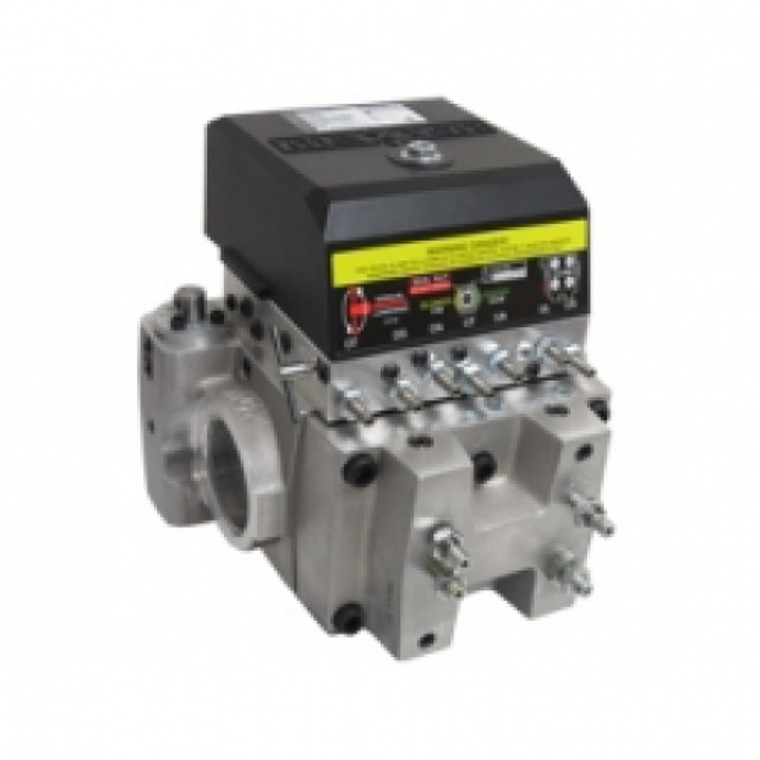

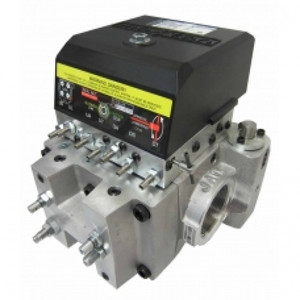

The Maxton UC4 is a standard hydraulic elevator control valve designed to provide reliable flow management and simple down-speed adjustment. Built to handle up to 800 PSI of pressure, it is a trusted solution in low- to mid-rise commercial applications where basic performance is required without added complexity. A field-proven option in the Maxton lineup, the UC4 is compatible with ISO VG 32 hydraulic fluids and available in multiple coil configurations.
Key Specifications
| Feature | Details |
|---|---|
| Product Type | Hydraulic Elevator Control Valve |
| Manufacturer | Maxton Manufacturing Company |
| Model | UC4 |
| Max Operating Pressure | 800 PSI (55 bar) |
| Port Size | 2" NPT Threaded or Grooved |
| Mounting Configuration | Jack port left, Tank port right, Pump port bottom |
| Solenoid Pattern | Square |
| Coil Voltage Options | 120 VAC, 240 VAC, 115 VDC, 185 VAC, 12 VDC |
| Operating Temperature | 80°F to 150°F (26°C to 65°C) |
| Oil Type | Hydraulic Fluid ISO VG 32 |
Note: For installation instructions and adjustment procedures, refer to Maxton’s official documentation.
