UC4M-E1 – Hydraulic Elevator Control Valve, 2" Ports, 800 PSI Max
Maxton UC4M-E1 | Hydraulic Elevator Control Valve – 2" Ports, 800 PSI Max

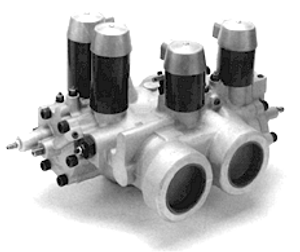

The Maxton UC4M-E1 is a reliable hydraulic elevator control valve designed for low-flow applications. It features individualized adjustments, high-efficiency solenoids, an integrated relief valve, and a left-hand jack port configuration. The UC4M-E1 builds on the UC4M platform with enhanced control precision, quieter valve action, and improved thermal stability—ideal for systems that require tighter regulation under varying loads or temperature conditions. Known for ease of installation and long-term performance, the UC4M-E1 is trusted in demanding commercial elevator systems.
Key Specifications
| Feature | Details |
|---|---|
| Product Type | Hydraulic Elevator Control Valve |
| Manufacturer | Maxton Manufacturing Company |
| Model | UC4M-E1 |
| Max Operating Pressure | 800 PSI (55 bar) |
| Standard Rated Contract Flow | 185 GPM (700 L/min) |
| Line Connections | 2" Threaded or Grooved |
| Mounting Configuration | Jack port left, Tank port right, Pump port bottom |
| Solenoid Pattern | Square |
| Coil Voltage Options | 120 VAC, 240 VAC, 115 VDC, 185 VAC, 12 VDC |
| Operating Temperature | 80°F to 150 |
