WS12 Wedge Sockets – 1/2″ Rope, 12–36″ x 3/4″ Rods
WS12 Series | Elevator Rope Wedge Sockets
The WS12 Series Rope Wedge Sockets are designed for secure and efficient 1/2" rope terminations in elevator systems. Available in rod lengths from 12" to 36", each unit uses a 3/4" diameter rod, ideal for freight, compensating, and high-speed gearless elevator applications.
Replace old babbit sockets and enjoy faster, safer installation without the risk of fire or improper pours. Wedge sockets eliminate the need for messy babbit or resin methods, saving time and labor during reroping or cable adjustments.
- Save labor costs on babbit and resin socketing
- Discard old sockets when reroping or adjusting stretch—much faster
- Easy installation and cable adjustment
- Approved in all 50 states including Los Angeles, Chicago, and New York
- Tested for high tensile strength: 31,600 lbs on 6x19 wire rope
- Suitable for heavy freight elevators, high-speed gearless systems, and compensating rope use
- Meets and exceeds ANSI A17.1 Rule 212 and Canadian B44 elevator code requirements

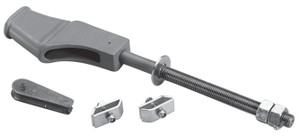

- Includes socket, pre-assembled rod with roll pin, two nuts, washer, cotter pin, and two wire clips
View Wedge Socket Specifications
| Model | Rope Size | Rod Dimensions | Application |
|---|---|---|---|
| WS1212 | 1/2" | 12" × 3/4" dia. rod | Mid-rise elevator car support |
| WS1218 | 1/2" | 18" × 3/4" dia. rod | Governor rope terminations |
| WS1224 | 1/2" | 24" × 3/4" dia. rod | Heavy-duty elevator cable anchoring |
| WS1230 | 1/2" | 30" × 3/4" dia. rod | Compensating rope systems |
| WS1236 | 1/2" | 36" × 3/4" dia. rod | Deep pit or retrofit installs |
WS12 Series wedge sockets provide a durable mechanical grip and simplify rope replacement in the field. Verify size and rod length before installation.
